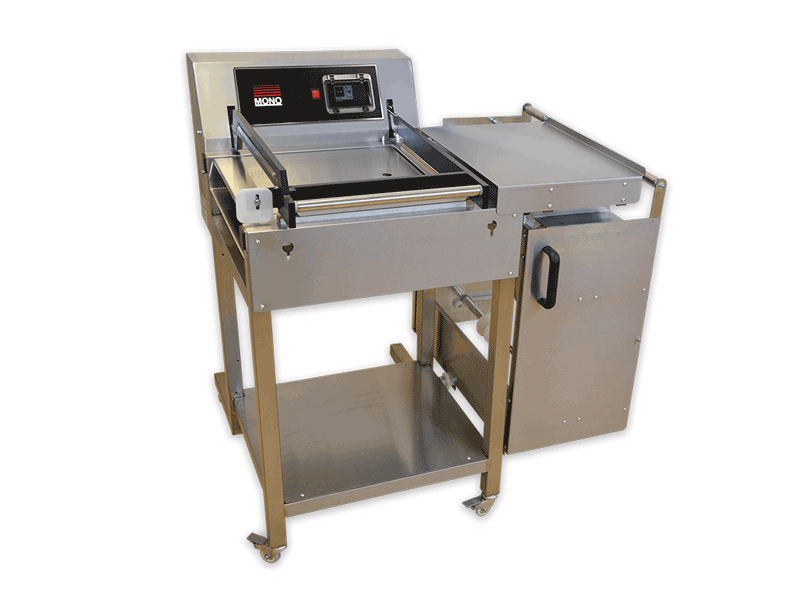

MONO Merlin L-Sealer

"The MONO L Sealer i bought new 30 years ago has been in daily use ever since. It is an extremely reliable and flexible piece of equipment and sealing soft rolls and tray-cakes keeps them so much better." Martin Hunt, Joe's Bakery

Mono Equipment’s highly versatile Bluebird Merlin L-Sealer wraps a large number of products produced in a typical bakery or confectionery store with exception of French sticks.

The Merlin L-Sealer, has a maximum seal area of 40cm x 40cm and is a manually operated machine which is simple and easy to use – with minimum training required.

Free-running castors allow the Merlin to be easily re-positioned, whilst the ability to operate from either two rolls of film, offers an immediate choice of film widths and breathing rates.

The craftsmanship that goes in to each built-to-order Merlin L-Sealer ensures that these machines are built to last. The use of stainless steel in their manufacture also guarantees them to be durable, hygienic and easy to clean.

— For Warranty click here

Contact Us

For further information on this product or to request a quotation please email: sales@monoequip.com

Features
Specifications
Brochures
User Manuals
Spare Parts

— Will handle a majority of items produced in a typical bakery, confectionery shop or food service outlet (with the exception of French Sticks)

— Wire temperature controller - for desired heat

— Quick and efficient for maximum throughput

— 13amp plug installation for immediate Plug-&-Play

— Has a seal area of 40cm by 40cm

— Locking safety castors for effortless positioning and superb stability

— An optional free-standing mandrel frame can be purchased which will hold up to four rolls of film

— Hygienic stainless steel construction ensuring cleaning is quick and easy

— Solid build ensures durability and long life

— Optional and erectable table

— Pack height variation is catered for by raising and lowering the dealing platform

— Simple to use on/off switch

Specifications	Merlin
Width (mm)	1,429 (56 1/4")
Depth (mm)	792 (31 1/4")
Height closed (mm)	1,210 (47 1/2")
Height open (mm)	1,370 (54")
Weight (kg)	75 (165lbs)
Wire temperature controller	Y
On-off switch/power neon	Y
Loading platform/film separator	Y
Locking safety castors	Y
Height adjustaable sealing platform	3 positions
Electrics *
Power Supply * An electrical socket must be protected by a 30mA Type A Residual Current Device (RCD) before installation and commissioning of the oven.	Single phase, 13A maximum load, suitable for 240v, 50-60Hz

Click on the link below to view the L-Sealer Brochure:

Mono Merlin L-Sealer (GB)

Click on the link below to view the Merlin User Manual:

Mono Merlin User Manual (GB)

Click the link below to view the Merlin Quick Start Guide:

MONO Merlin L-Sealer Quick Start Guide

Click on the link below to view the Merlin L-Sealer Spare Parts Manual:

MONO Merlin L-Sealer Spare Parts (GB)
